Important Data To The Esp Control Module (N47-5) Via Can

To locate CAN data inputs to the ESP control module, see Fig 1 .

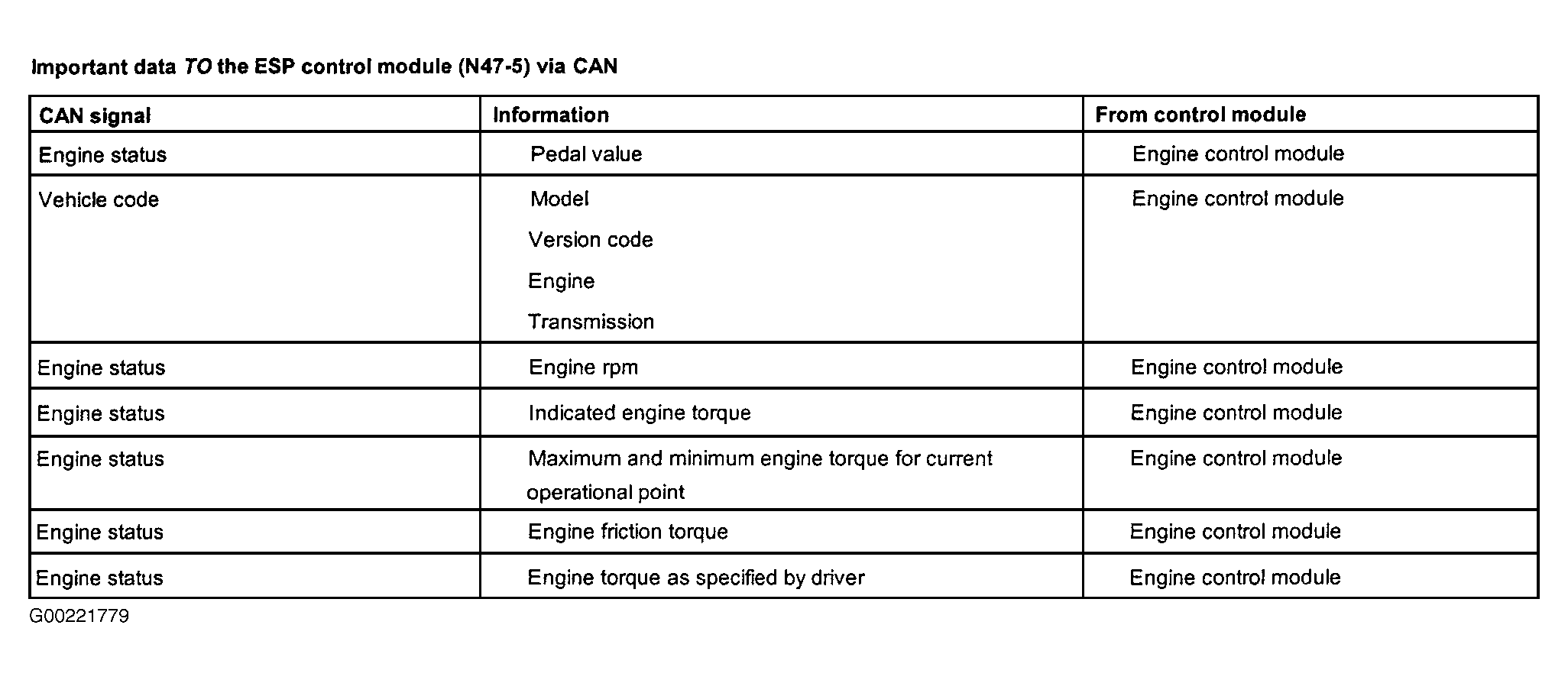

Fig 1: Important data to the ESP control module (N47-5) via CAN

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
