Important Can Data Outputs From The Esp Control Module (N47-5)

To locate CAN data outputs from the ESP control module, see Fig 1 .

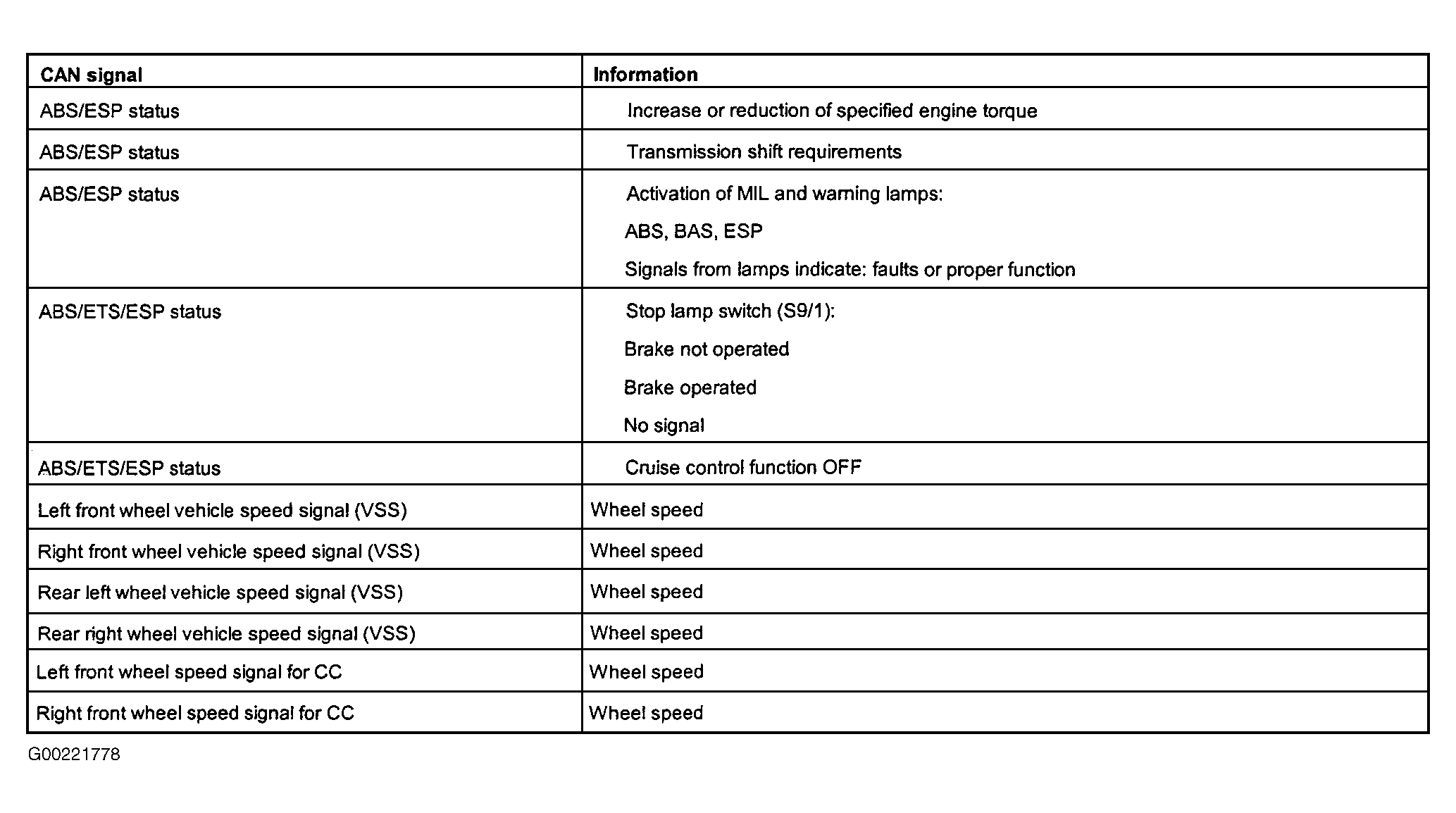

Fig 1: Important CAN data outputs from the ESP control module (N47-5)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
