ME-SFI post-start enrichment function - GF07.61-P-3011F

ENGINE 104.941 /943 /944 /991 /994as of 1.8.96

ENGINE 104.995

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

with CODE (498) as of Model year 97 Japanese version

ENGINE 111.921 /942 as of 1.9.98,

111.943,

111.944 as of 1.8.96,

111.946 as of 1.6.98,

111.947/973,

111.975 as of 1.8.96

ENGINE 111.945

in MODEL 208.335/435 as of 1.6.98,

202.020/080 as of 1.9.98

ENGINE 111.974

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

ENGINE 119.980 /981 /982 /985

ENGINE 120.982/983

ENGINE 137.970

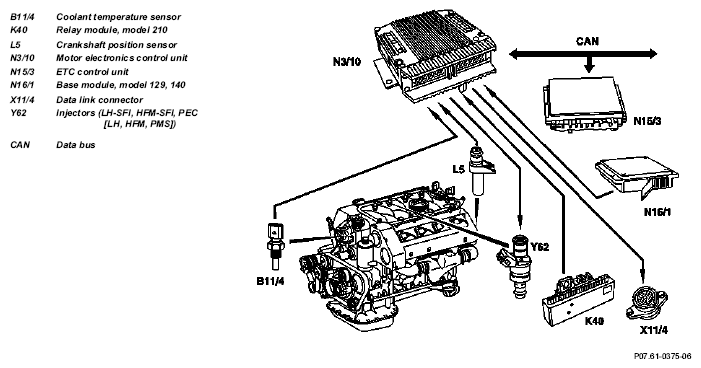

Shown on Engine 119

Task

Enriching the fuel-air mixture for a short time after a cold start to ensure that the engine runs smoothly.

Design/function

Post-start enrichment is dependent on:

• Coolant temperature at engine start
• Estimated time after start
• Selector lever position
• Correction programming

Post-start enrichment compensates for the fuel which precipitates on the cylinder walls. The fuel-air mixture is enriched sufficiently until a certain engine speed has stabilized (e.g. 1500 rpm with no gear engaged at +30 °C coolant temperature for about 30 s).

	Motor electronics control unit, location/task/ design/function		GF07.61-P-5000F
	Coolant temperature sensor, location/task/ design/function	Engine 119, 120	GF07.04-P-5026F
		Engine 104, 111	GF07.04-P-5026G
		Engine 112, 113, 137	GF07.04-P-5026A
	Crankshaft position sensor, location/task/ design/function		GF07.04-P-4116F
	Fuel injector, location/task/design/function		GF07.03-P-5004F
	Correction programming function		GF07.61-P-3031F
	ME-SFI ignition system function		GF15.12-P-0001F
	ECI ignition system function	Engine 137	GF15.15-P-3000L
	ME fuel supply function	Engine 104, 111, 119, 120 in Model 129, 140, 170, 202, 208, 210	GF07.61-P-3004F
		Engine 112, 113, 137 (except in Model 203, 209, 211)	GF07.61-P-3004A
		Engine 112.91/94/95 203 Engine 112.91/94/95, 113.96 in Model 211 Engine 112.912/955, 113.968 in Model 209	GF07.61-P-3004P
	ETC control unit, location/task	Information on selector lever position P/N and gear engaged in the case of automatic transmission. Transmission 722.6	GF27.19-P-4012G
