Electrical System Tests Component Locations (Section 21)
ELECTRICAL SYSTEM TESTS COMPONENT LOCATIONS (SECTION 21)

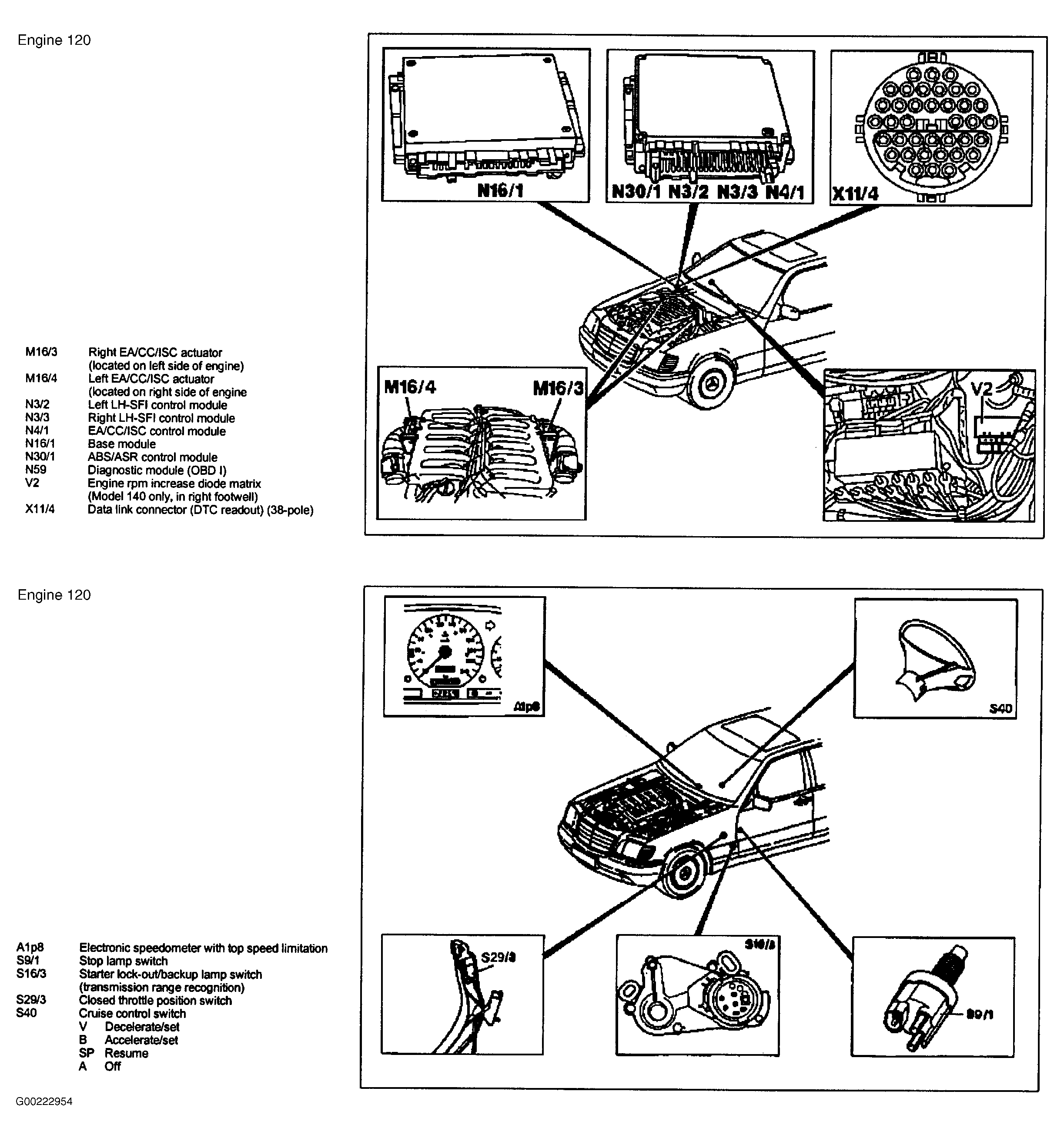

| Component | See |
|---|---|
| ABS/ASR Control Module (N30/1) | Fig 1 |
| Base Module (N16/1) | 1 |
| Closed Throttle Position Switch (S29/3) | Fig 1 |
| Cruise Control Switch (S40) | Fig 1 |
| Data Link Connector - DTC Readout 38-Poles (X11/4) | Fig 1 |
| Diagnostic Module - OBD I (N59) | Fig 1 |
| EA/CC/ISC Control Module (N4/1) | Fig 1 |
| Electronic Speedometer With Top Speed Limitation (A1p8) | Fig 1 |
| Engine RPM Increase Diode Matrix - Model 140 Only, In Right Footwell (V2) | Fig 1 |
| Left EA/CC/ISC Actuator (M16/4) - Located on right side of engine. | Fig 1 |
| Left LH-SHI Control Module (N3/2) | Fig 1 |
| Right EA/CC/ISC Actuator (M16/3) - Located on left side of engine. | Fig 1 |
| Right LH-SFI Control Module (N3/3) | Fig 1 |
| Starter Lock-Out/Backup Lamp Switch - Transmission Range Recognition (S16/3) | Fig 1 |
| Stop Lamp Switch (S9/1) | Fig 1 |
