Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - HFM-SFI System
>>
System Tests
>>
Ignition System Tests (Section 24)
>>
Ignition System Tests 9.0-11.0
Ignition System Tests 9.0-11.0

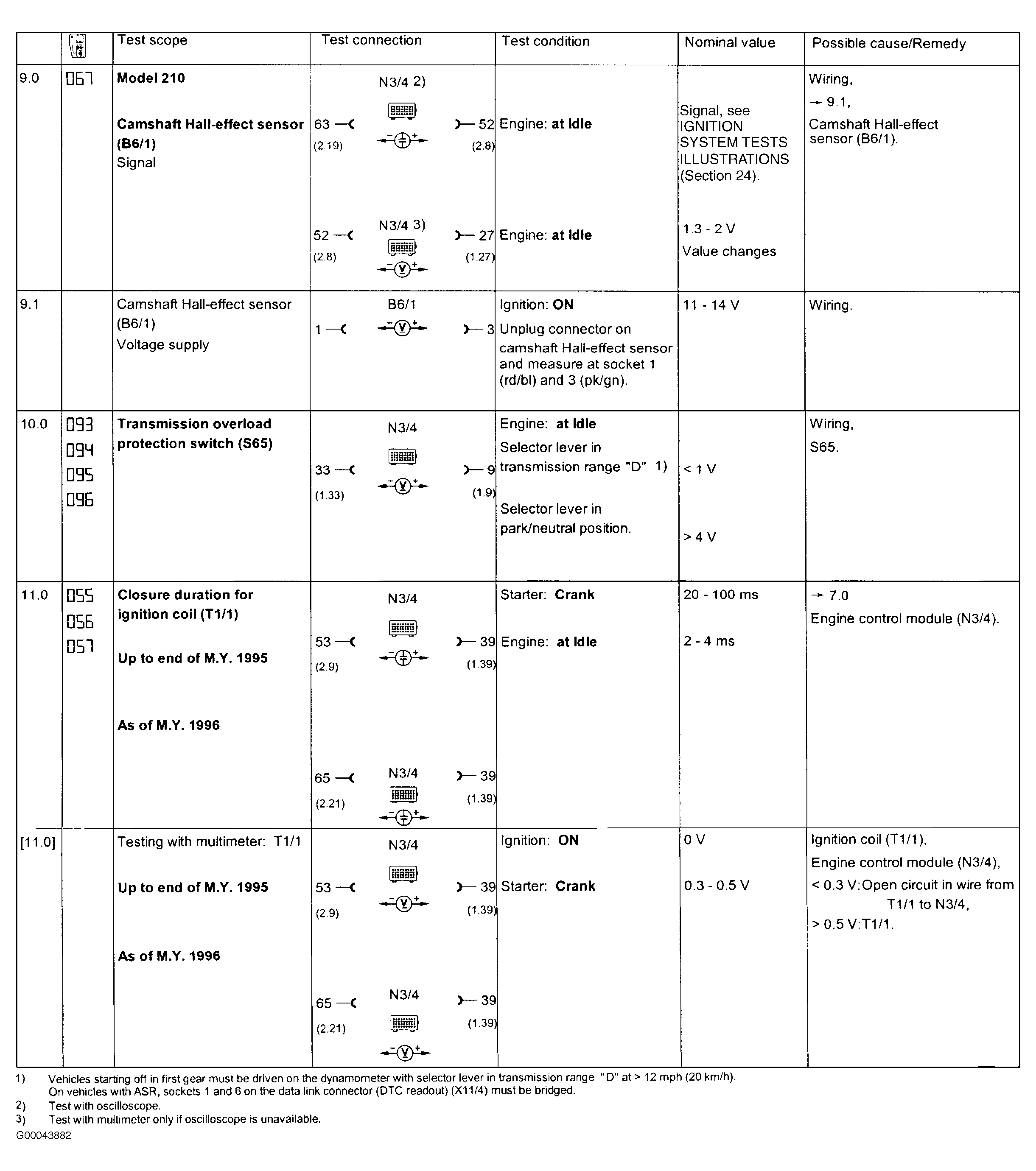

Fig 1: Ignition System Tests (Steps 9.0-11.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
