Fuel Injection System - Diesel: Wiring Diagram

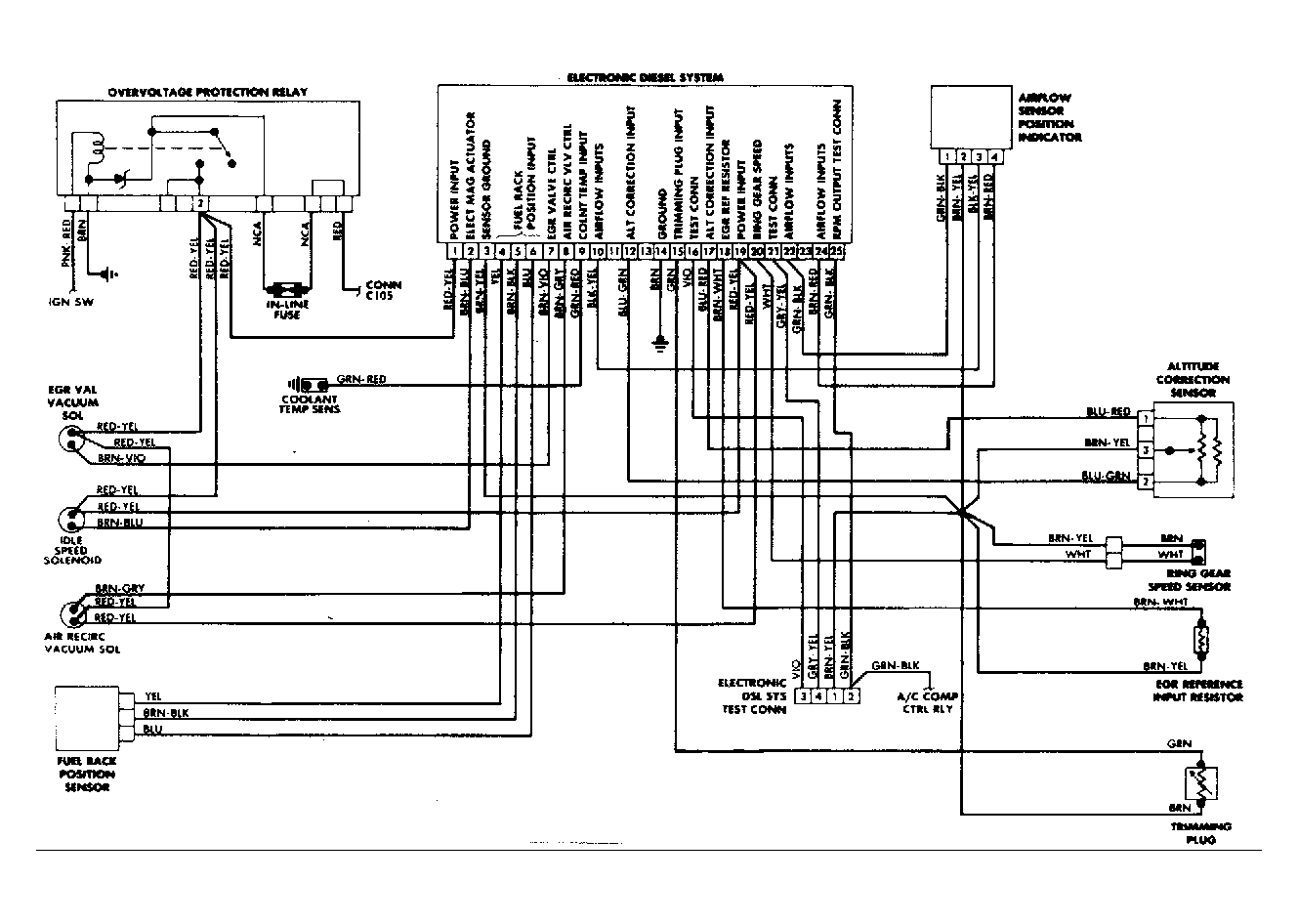

Fig 1: Electronic Diesel System Wiring Diagram

G62446
