Checking 100°C (212°F) Temperature Switch

Remove connector from relay box and connect test lamp to terminals 5 and 8. Turn on ignition, test lamp should light when cooling water temperature is above 100°C (212°F).

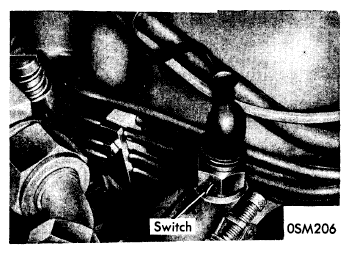

Fig 1: Temperature Switch (212°F)
G09309333Courtesy of MERCEDES-BENZ USA
