Active driving display setting
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- When an operation signal is received/switch operation is detected, the CMU sends a setting information signal to the active driving display based on the information from the user operations.
- The active driving display changes the setting value of the active driving display based on the setting information signal.

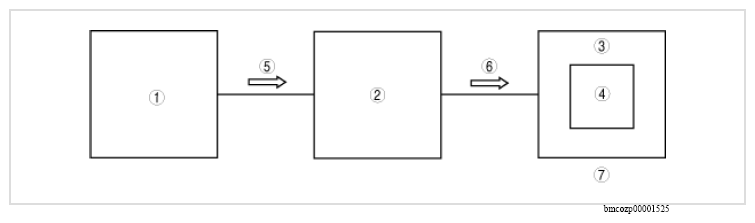

ENTERTAINMENT SYSTEM COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Commander switch |
| 2 | Connectivity master unit (CMU) |
| 3 | Instrument cluster |
| 4 | Active driving display |
| 5 | Switch operation |
| 6 | Setting information signal |
| 7 | Changes active driving display setting value |
