Remove Liftgate Lower Trim: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the liftgate lower trim is replaced, remove the following parts.
- Cargo compartment light

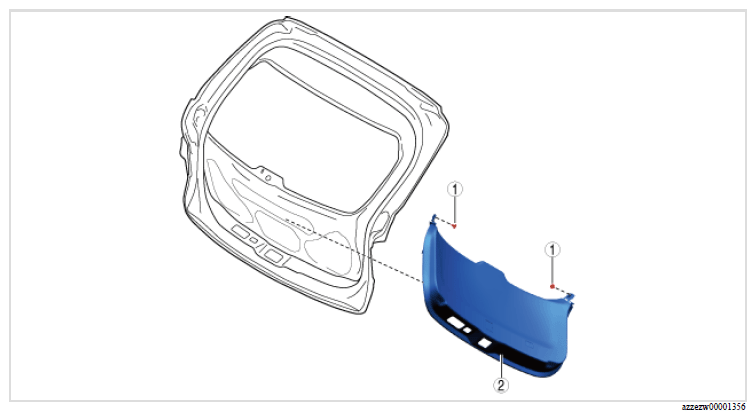

Remove using the procedure shown in the figure.

Courtesy of MAZDA MOTORS CORP.

PART NAME DESCRIPTION

Step	Part name
1	Fastener
2	Liftgate lower trim (See Liftgate lower trim removal note ).
