Power System Location Index (Exterior Front)

WARNING: This page is about a different car, the 2024 Mazda CX-90. However, it is still accessible from the selected car via links, so may be relevant.

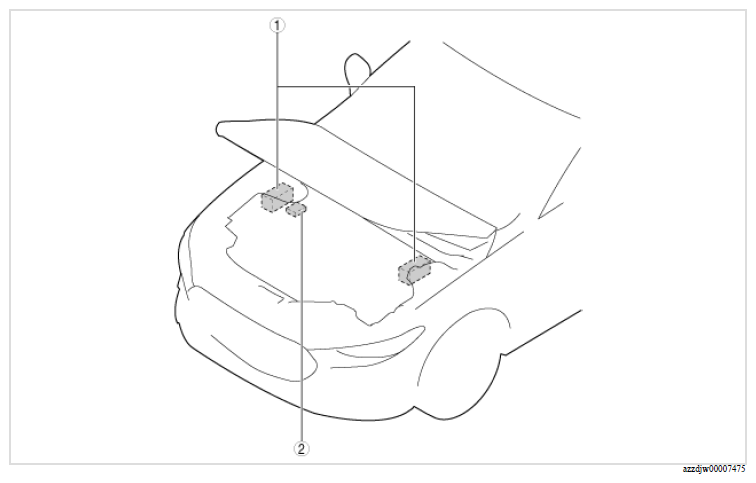

Fig 1: Power System Components Location (Exterior Front)
G16713373Courtesy of MAZDA MOTORS CORP.
POWER SYSTEM COMPONENT OPERATIONS

Component no. Refer to
1 Relay and fuse block
(See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION ).
(See FUSE SERVICE CAUTIONS ).
(See RELAY LOCATION ).
(See RELAY INSPECTION ).
2 Main fuse
(See MAIN FUSE REMOVAL/INSTALLATION ).
