Quick Diagnostic Chart

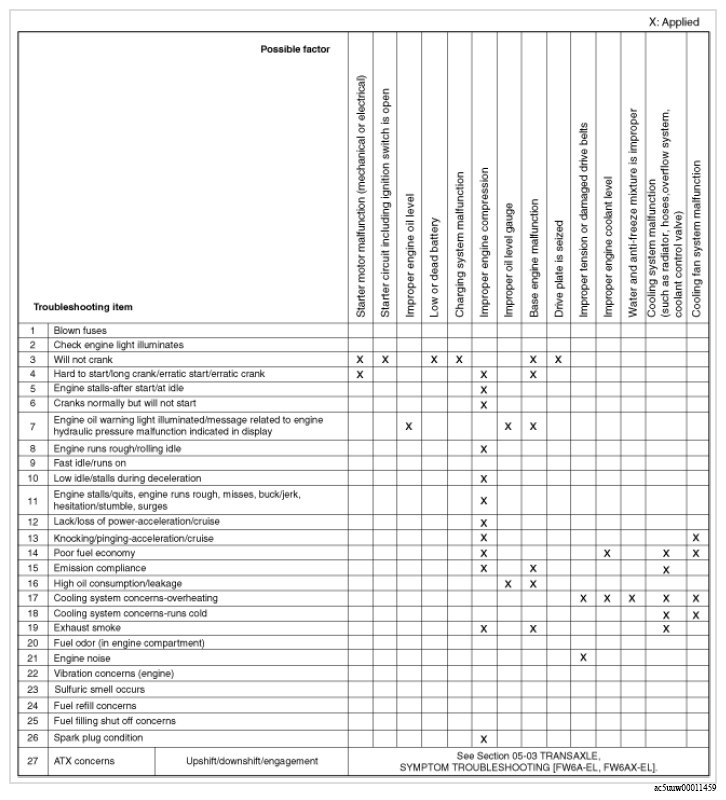

G16327206Courtesy of MAZDA MOTORS CORP.

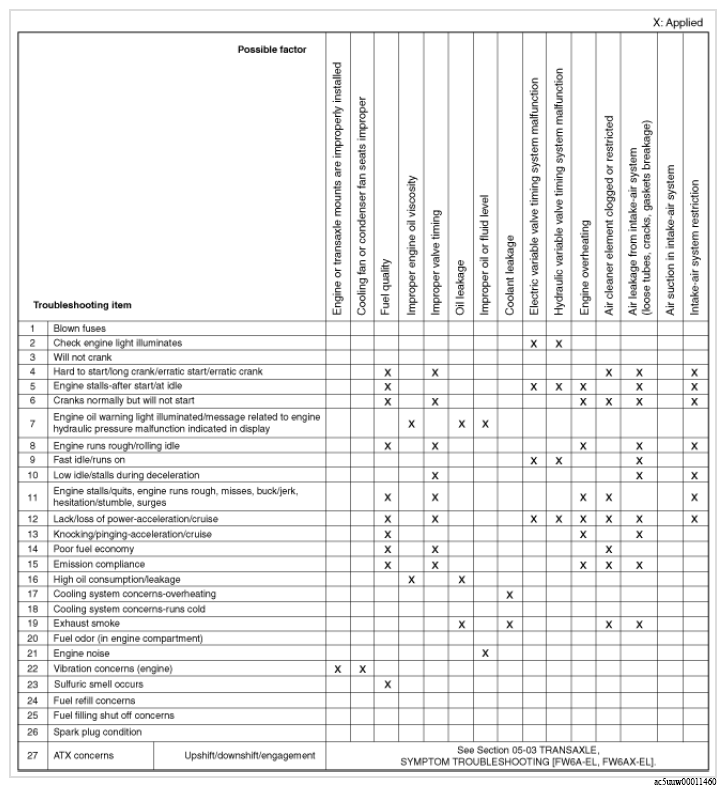

G16327207Courtesy of MAZDA MOTORS CORP.

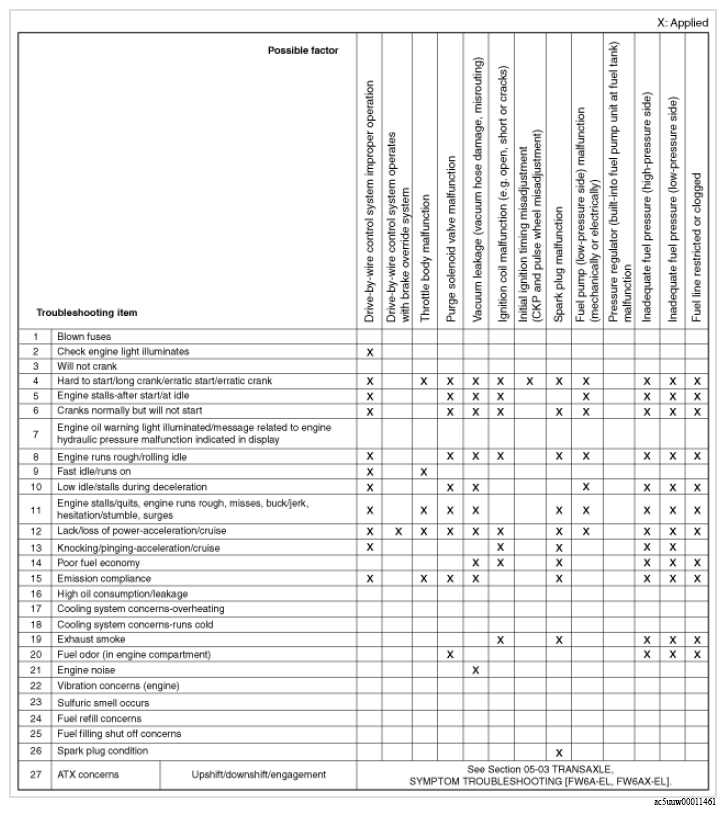

G16327208Courtesy of MAZDA MOTORS CORP.

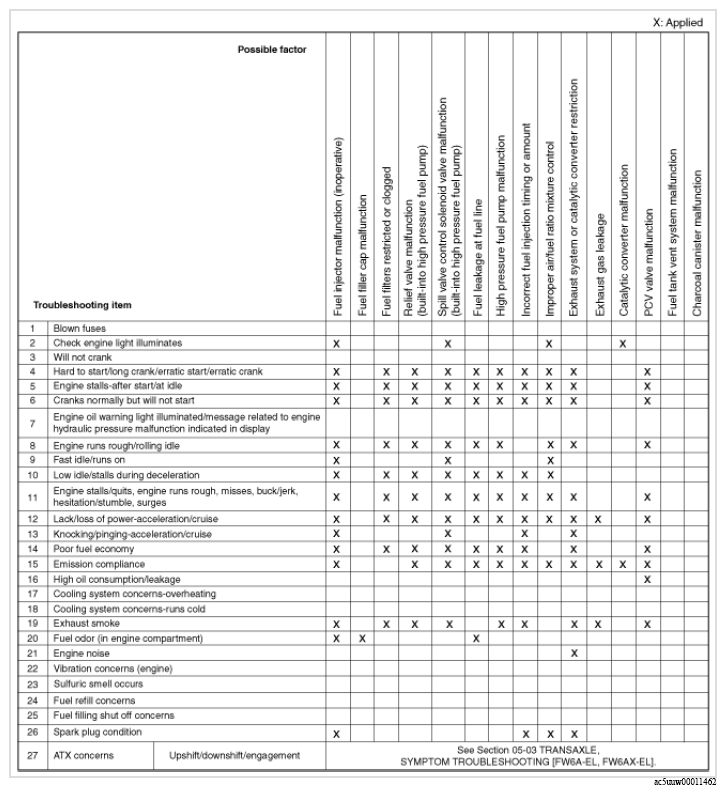

G16327209Courtesy of MAZDA MOTORS CORP.

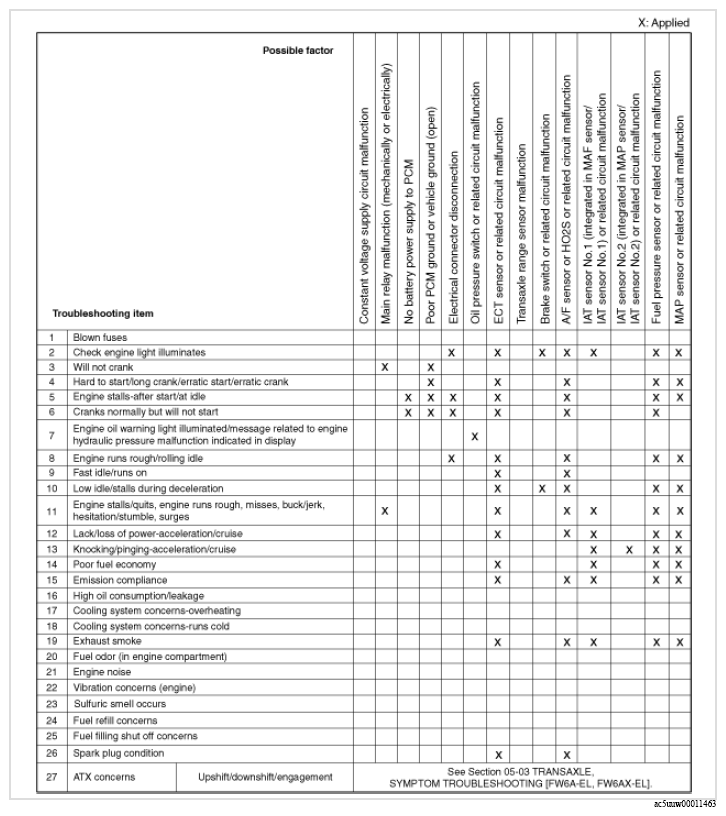

G16327210Courtesy of MAZDA MOTORS CORP.

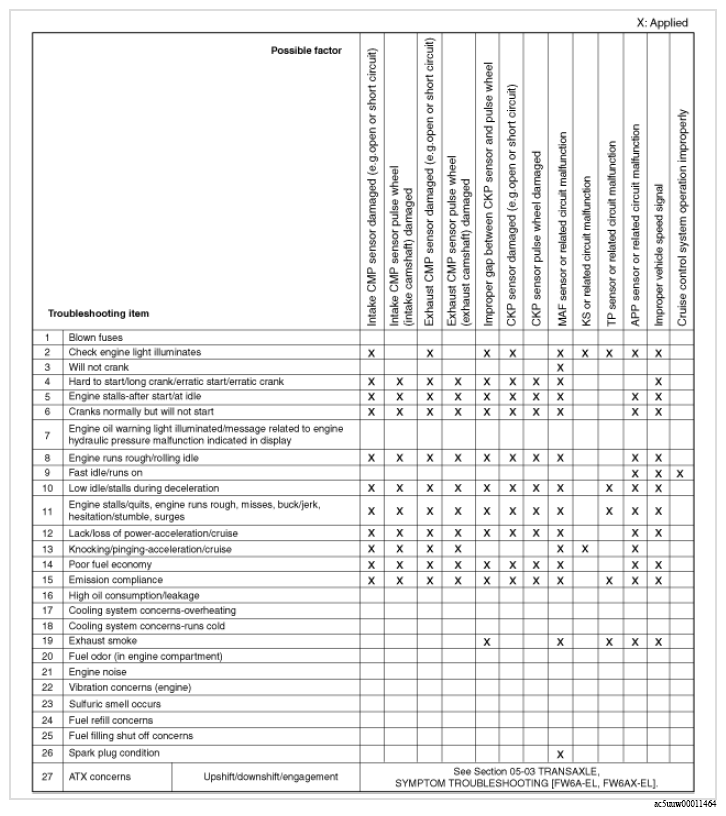

G16327211Courtesy of MAZDA MOTORS CORP.

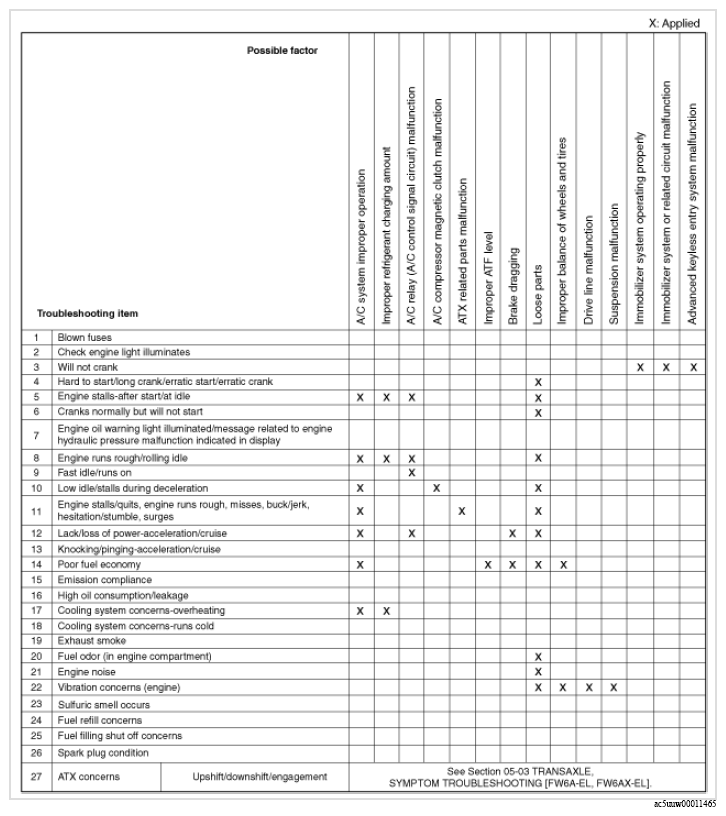

G16327212Courtesy of MAZDA MOTORS CORP.

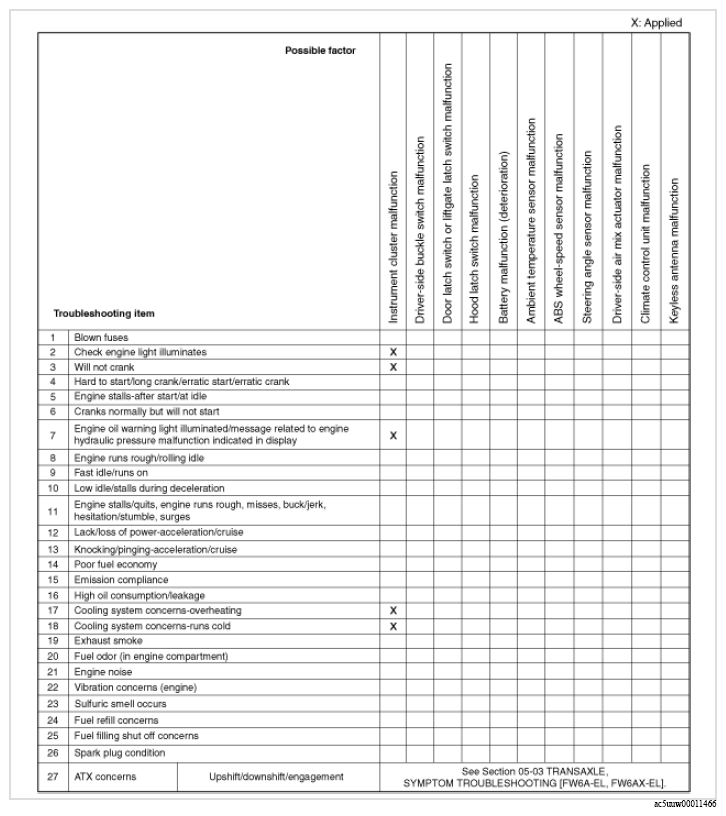

G16327213Courtesy of MAZDA MOTORS CORP.
