Air Fuel Ratio (A/F) Sensor Removal/Installation
>>
Assembly Of Wiring Harness To Wire Clip Note
Assembly Of Wiring Harness To Wire Clip Note

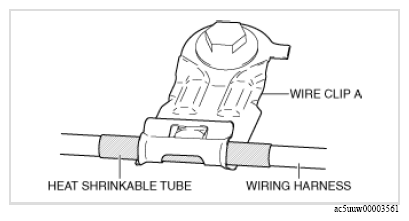

Secure the heat shrinkable tube on the wiring harness to wire clip A.
Courtesy of MAZDA MOTORS CORP.
Secure the wiring harness to wire clip B so that the band on the wiring harness is positioned to the position shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
