Selector lever knob installation note

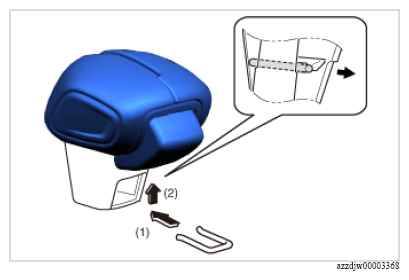

  1. Attach the spring to the selector lever knob.
    G16706884Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Install the spring to the position past the stopper.
  2. Attach the cover to the selector lever knob.
    G16706885Courtesy of MAZDA MOTORS CORP.
  3. Install the selector lever knob on the selector lever.
