Automatic Transmission Shift Mechanism

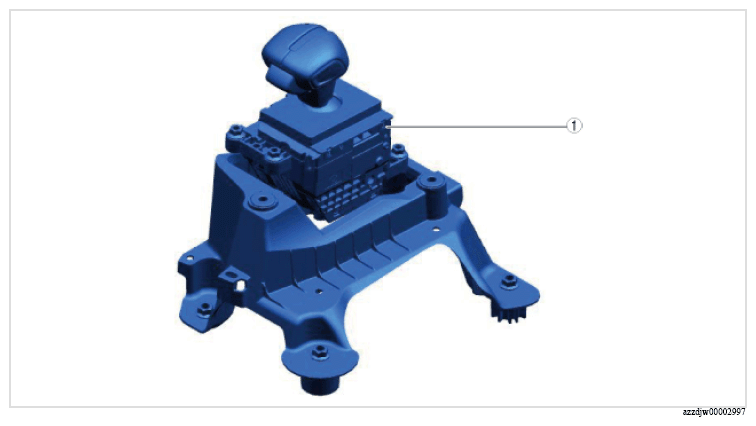

Fig 1: Automatic Transmission Shift Mechanism Components Location
G16708869Courtesy of MAZDA MOTORS CORP.
AUTOMATIC TRANSMISSION SHIFT MECHANISM COMPONENT OPERATIONS

Component No Refer to
1 Selector lever component
(See SELECTOR LEVER INSPECTION )
(See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION )
