Remove Middle Pipe

  1. Remove in the order indicated in the table.

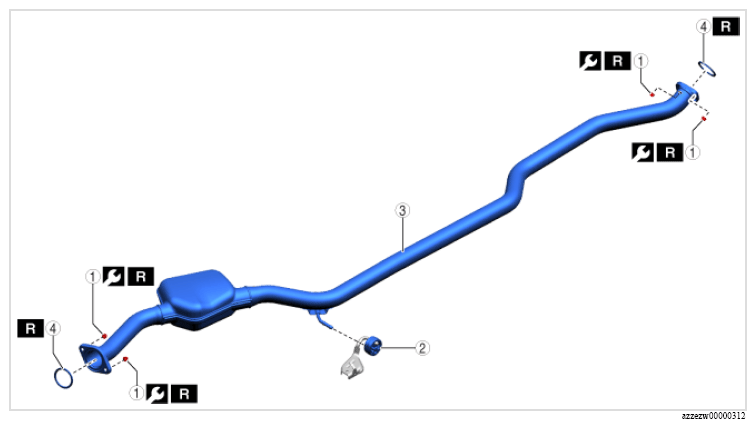

    Fig 1: Middle Pipe Nut With Torque Specifications
    G16702622Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Nut Replacement part 44.5 N.m {4.55 kgf.m, 32.8 ft.lbf}
2 Rubber - -
3 Middle pipe - -
4 Gasket Replacement part -
