Connector disconnection note

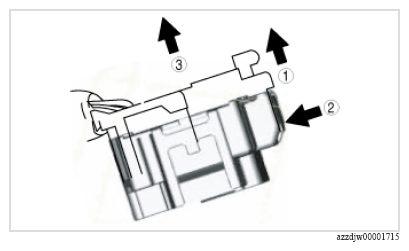

  1. Disconnect the connectors as shown in the figure.
G16712083Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
