Remove B-pillar Upper Trim: Notes

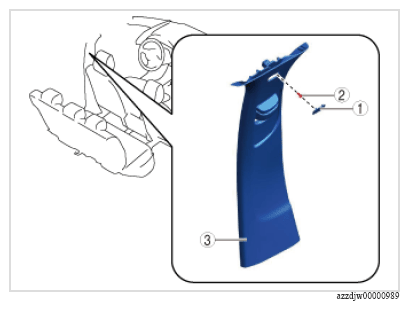

  1. Remove using the procedure shown in the figure.
    • The figure shows the left side (same as right side).
G16715673Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Hole cover
2 Screw
3 B-pillar upper trim
(See B-pillar upper trim removal note ).

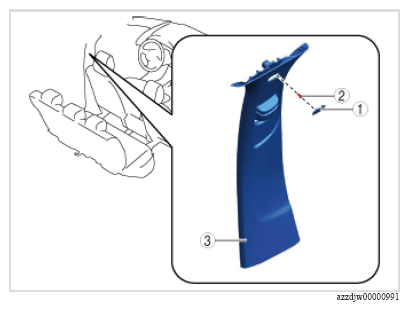

  1. Remove using the procedure shown in the figure.
    • The figure shows the left side (same as right side).
G16715676Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Hole cover
2 Screw
3 B-pillar upper trim
(See B-pillar upper trim removal note  ).
