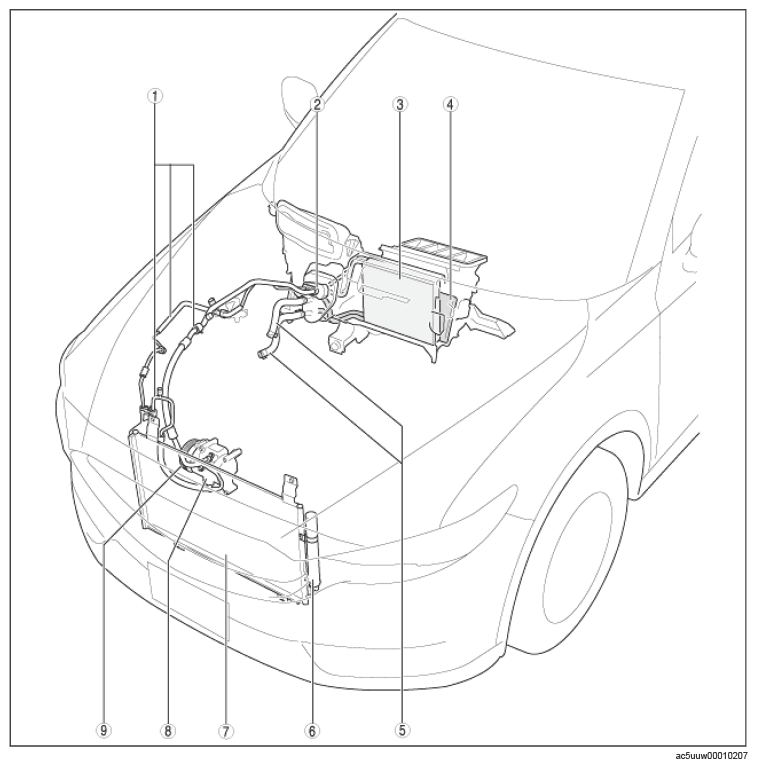

HVAC BASIC SYSTEM COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION [VIN Y] .) |
| 2 | Expansion valve (See EXPANSION VALVE REMOVAL/INSTALLATION .) |
| 3 | Evaporator (See EVAPORATOR INSPECTION .) |
| 4 | Heater core (See HEATER CORE INSPECTION .) |
| 5 | Heater hose (See HEATER HOSE REMOVAL/INSTALLATION [VIN Y] .) |
| 6 | Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION [VIN Y] .) |
| 7 | Condenser (See CONDENSER REMOVAL/INSTALLATION [VIN Y] .) (See CONDENSER INSPECTION [VIN Y] .) |
| 8 | A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION [VIN Y] .) |
| 9 | Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [VIN Y] .) (See MAGNETIC CLUTCH ADJUSTMENT [VIN Y] .) (See MAGNETIC CLUTCH INSPECTION [VIN Y] .) |
