Pre-inspection preparation

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

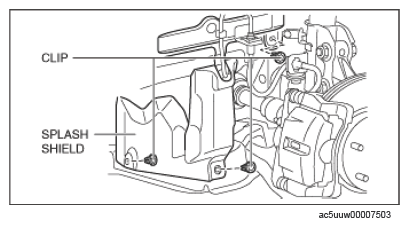

  1. Remove the clips.
    G15639895Courtesy of MAZDA MOTORS CORP.
  2. Set the splash shield out of the way.

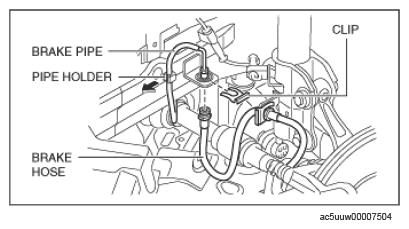

  3. Disconnect the brake pipe from the brake hose.
    G15639896Courtesy of MAZDA MOTORS CORP.
  4. Remove the clip.
  5. Remove the brake hose from the bracket.
    CAUTION:
    • When removing the brake pipe, the pipe holder may detach from the body. Remove the brake pipe while pressing the pipe holder to prevent it from detaching from the body. The pipe holder cannot be reused if it detaches from the body.
  6. Detach the brake pipe from the pipe holder.

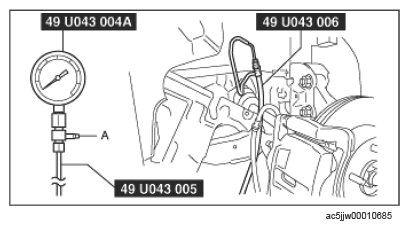

  7. Install the SSTs to the brake pipe as shown in the figure below.
    G15639897Courtesy of MAZDA MOTORS CORP.
  8. Bleed the brake line and the SSTs of air. Bleed the air form the SSTs using bleeder screw A.
  9. Install the pedal force gauge to the brake pedal.
  10. Connect the vacuum gauge to the vacuum line.
