Front Brake Disc Removal/Installation [With 2-Piston Floating Caliper]: Notes
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

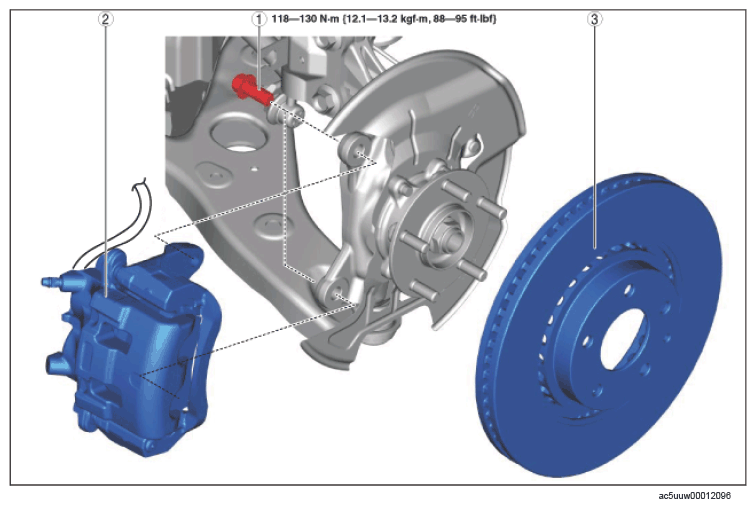

Fig 1: Front Brake Disc Components Location With Torque Specification (With 2-Piston Floating Caliper)
FRONT BRAKE DISC COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Bolt |
| 2 | Front brake caliper component (See Front Brake Caliper Component Removal Note .) (See Front Brake Caliper Component Installation Note .) |
| 3 | Disc plate |
