WIRELESS CHARGER (Qi) DISABLING PROCEDURE

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
2. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
5. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
6. Wireless charger (Qi) component (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)

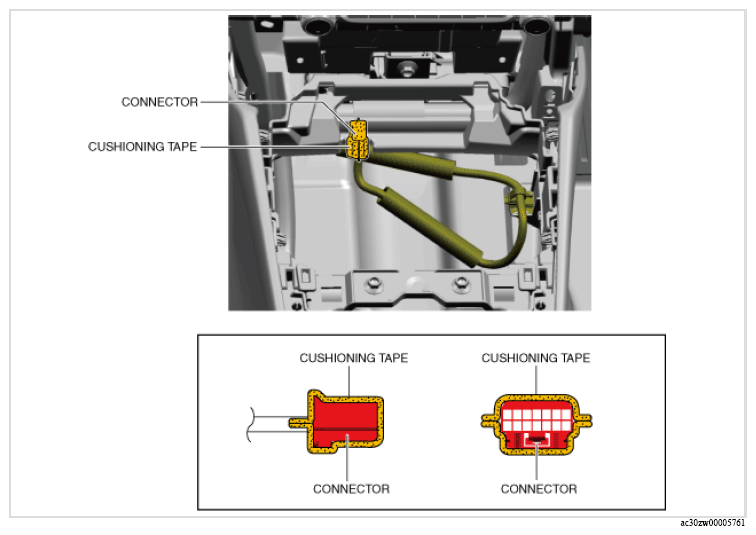

Wrap cushioning tape around the connector.
NOTE:
- To prevent interference between the disconnected connector and the vehicle interior, wrap commercially available cushioning tape (length: 80 mm {3.1 in} x width: 50 mm {1.97 in} x thickness: 5 mm {0.2 in}) around the connector.
Courtesy of MAZDA MOTORS CORP.

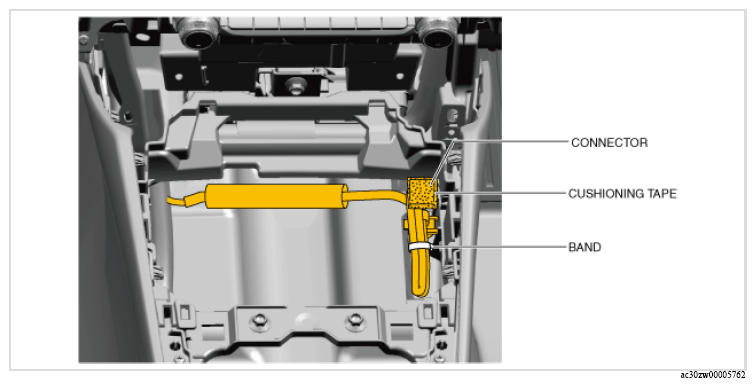

Secure the wiring harness with the band at the position shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Wireless charger (Qi) component (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
2. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
4. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
5. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
6. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
