Mazda intelligent Drive Select (Mi-Drive) SWITCH REMOVAL/INSTALLATION
>>
Remove Shift Panel
>>
Shift panel removal note
Shift panel removal note

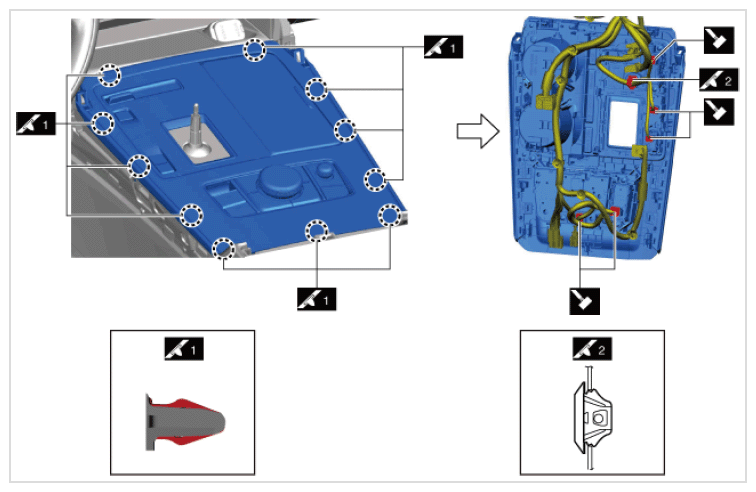

Remove the shift panel as shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
