Resistance inspection: Notes
WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before performing the servicing.
NOTE:
- Perform the procedure with the coolant temperature sensor No. 1 removed. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [H3T] ).

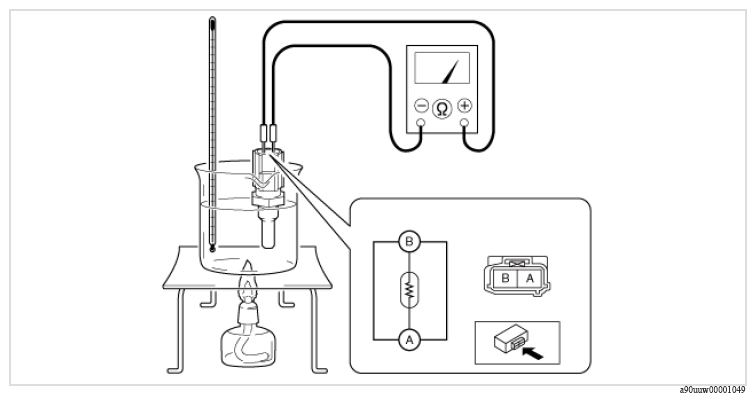

- Place the detection part of the coolant temperature sensor in water and while gradually increasing the water temperature, measure the resistance between coolant temperature sensor terminals A-B.
- If not within the standard, replace the coolant temperature sensor No. 1. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [H3T] ).
