EGR Pressure Sensor Removal/Installation

Remove the cowl grille cover (RH). (See COWL GRILLE REMOVAL/INSTALLATION .)
Open the capsule cover. (See CAPSULE COVER OPEN/CLOSE [H3T] .)
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

Remove in the order indicated in the table.

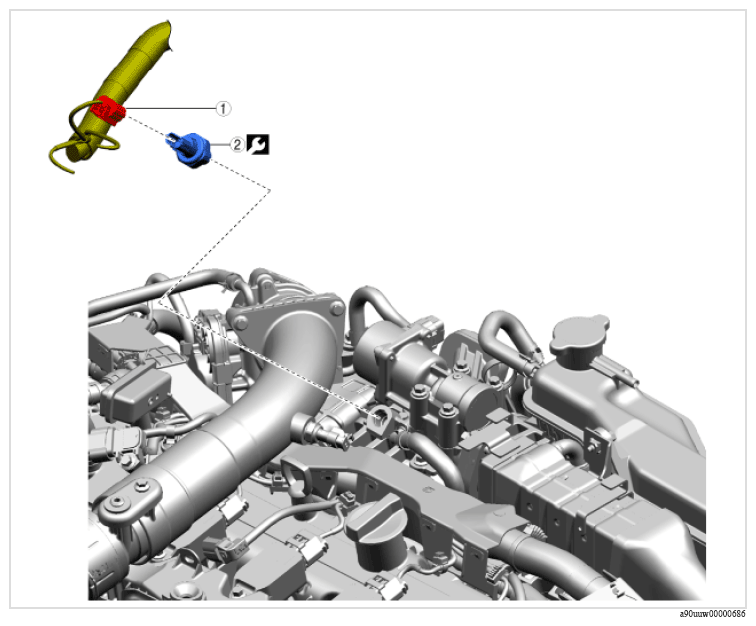

Fig 1: EGR Pressure Sensor With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Connector	-
2	EGR pressure sensor	13.5 N.m {138 kgf.m, 119 ft.lbf}
