Bolt installation note

  1. Install the bolt shown in the figure.

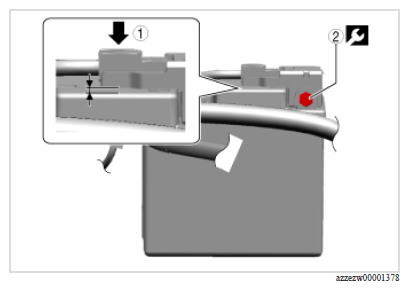

Fig 1: Sub-Battery Fuse Bolt With Torque Specification
G16704434Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Symbol Content
(1) (2)... Servicing procedure
0 mm {0.00 in}
3.7 N.m {38 kgf.cm, 33 in.lbf}
