Engine Compartment

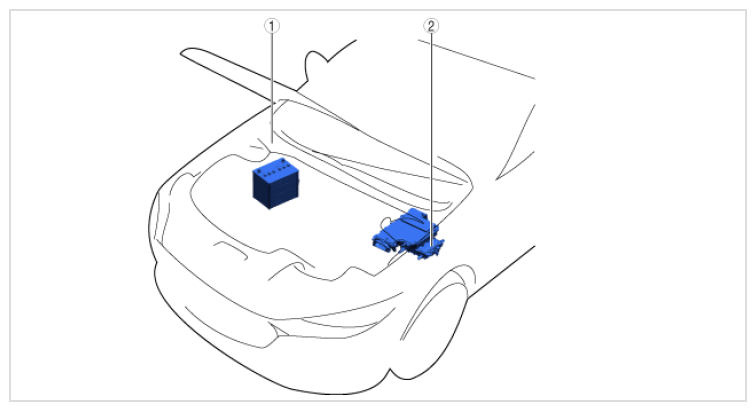

Fig 1: Charging System Components Location - Engine Compartment (PYUL)

Courtesy of MAZDA MOTORS CORP.

CHARGING SYSTEM COMPONENT OPERATIONS (PYUL)

Component No.	Refer to
1	Lead-acid battery (See BATTERY REMOVAL/INSTALLATION ).
2	DC-DC CONVERTER (e-SKYACTIV PHEV) (See DC-DC CONVERTER REMOVAL/INSTALLATION [PYUL] ). (See DC-DC CONVERTER INSPECTION [PYUL] ).
