Remove Cluster Switch No. 1

NOTE:

Cluster switch No. 1 is integrated with the following parts.
- i-ACTIVSENSE OFF switch (with i-ACTIVSENSE OFF switch)
- i-ACTIVSENSE mute switch (with i-ACTIVSENSE mute switch)
- i-STOP OFF switch (with i-STOP OFF switch)
- TCS OFF switch
- Parking sensor switch (with parking sensor switch)
- Refueling switch (with refueling switch)

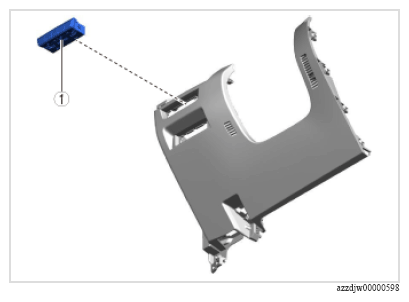

Remove using the procedure shown in the figure.

G16707756

Courtesy of MAZDA MOTORS CORP.

PART NAME DESCRIPTION

Step	Part name
1	Cluster switch No. 1
