Remove Trunk side upper trim (LH): Notes

NOTE:

If the trunk side upper trim (LH) is replaced, remove the following parts.
- Cargo compartment light
- USB terminal

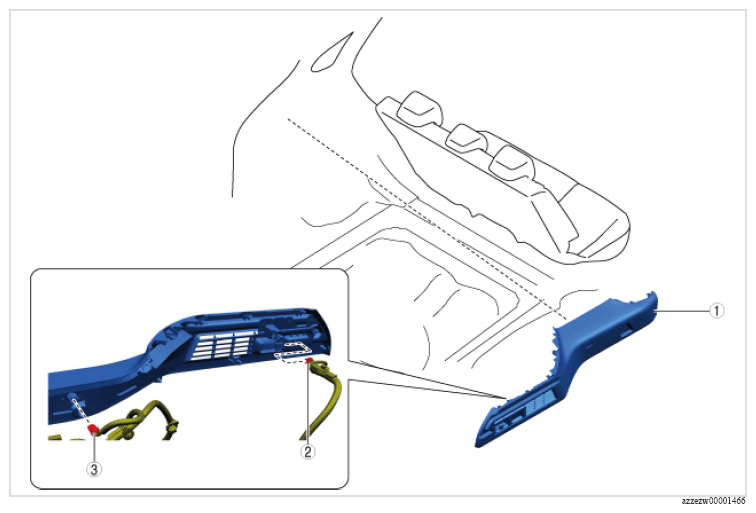

Remove using the procedure shown in the figure.

Courtesy of MAZDA MOTORS CORP.

PART NAME DESCRIPTION

Step	Part name	Applicable condition
1	Trunk side upper trim (LH) (See Trunk side upper trim (LH) removal note ).	-
2	Connector	-
3	Connector	With USB terminal
