Remove Trunk Side Trim Component (LH): Notes

NOTE:

If the trunk side trim (LH) is replaced, remove the following parts.
- AC power outlet (With AC power outlet)
- AC power outlet switch (With AC power outlet)

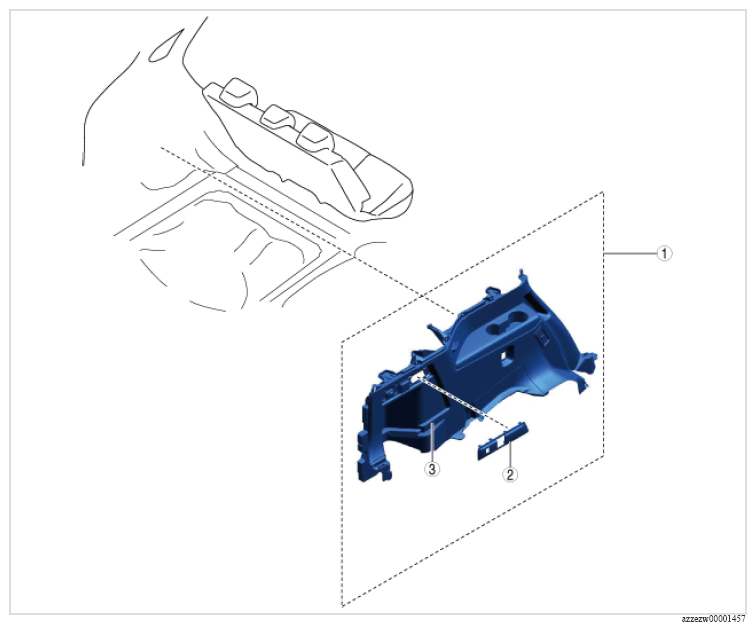

Remove using the procedure shown in the figure.

Courtesy of MAZDA MOTORS CORP.

PART NAME DESCRIPTION

Step	Part name
1	Trunk side trim (LH) component (See Trunk side trim (LH) component removal note ).
2	Trunk side trim cover component
3	Trunk side trim (LH)
