Connector connection note

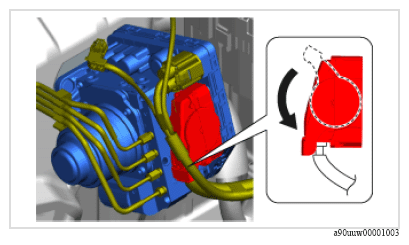

  1. Connect the connector and move the lock lever in the direction of the arrow.
    G16708807Courtesy of MAZDA MOTORS CORP.
  2. After connecting the connector, verify that the lock lever is inserted completely.
