Remove Auto-Dimming Rearview Mirror: Notes

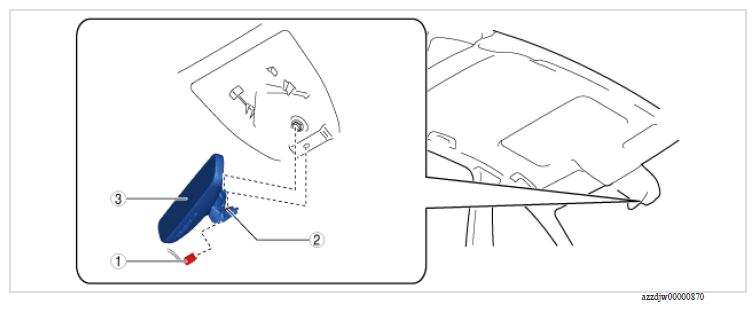

  1. Remove using the procedure shown in the figure.
G16695260Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Connector
2 Wiring harness clip
3 Auto-dimming rearview mirror
(See Auto-dimming rearview mirror removal note ).
(See Auto-dimming rearview mirror installation note ).
