Remove Rear Spoiler: Notes
CAUTION:
- Remove the rear spoiler using two people. Otherwise, it may fall off and be damaged.

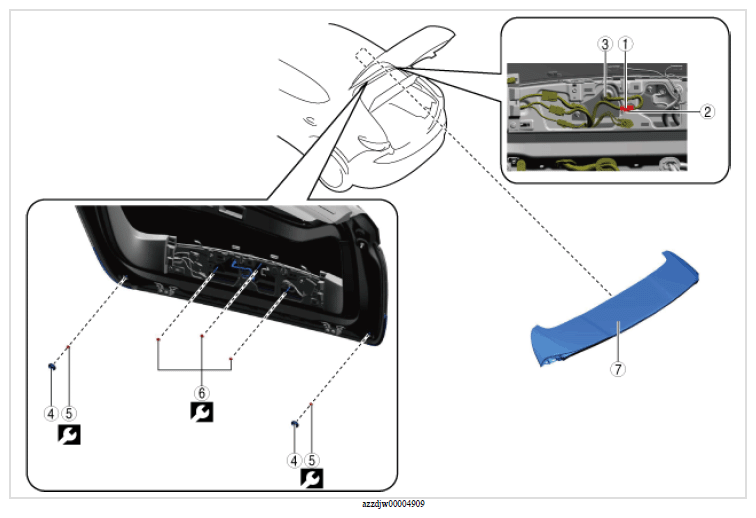

- Remove using the procedure shown in the figure.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Connector | - |
| 2 | Wiring harness clip | - |
| 3 | Grommet (See Grommet removal note ). |
- |
| 4 | Cap | - |
| 5 | Nut (See Nut removal note ). |
5 N.m {50 kgf.cm, 43 in.lbf} |
| 6 | Nut (See Nut removal note ). |
5 N.m {50 kgf.cm, 43 in.lbf} |
| 7 | Rear spoiler (See Rear spoiler removal note ). (See Rear spoiler installation note ). |
- |
