Remove Liftgate Lower Trim: Notes

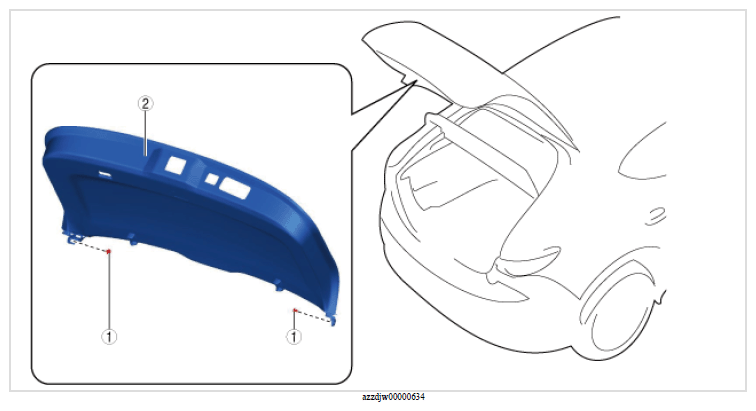

  1. Remove using the procedure shown in the figure.
G16695982Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Fastener
2 Liftgate lower trim
(See Liftgate lower trim removal note ).
