Interior Front

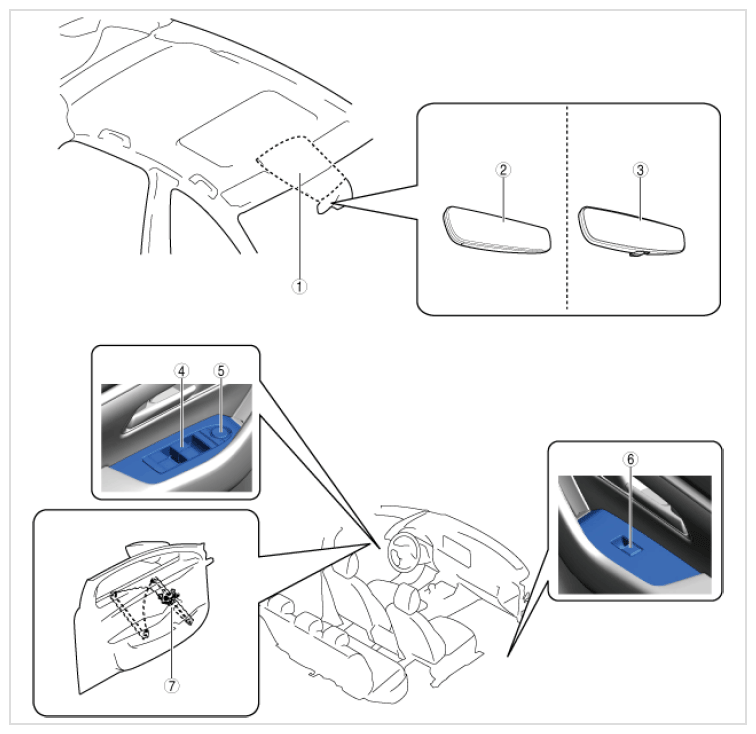

Fig 1: Glass/Windows/Mirrors Components Location - Interior Front (L.H.D.)

Courtesy of MAZDA MOTORS CORP.

GLASS/WINDOWS/MIRRORS COMPONENT OPERATIONS - INTERIOR FRONT (L.H.D.)

Component No.	Refer to
1	Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION ).
2	Auto-dimming rearview mirror (with auto-dimming rearview mirror) (See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION ). (See AUTO-DIMMING REARVIEW MIRROR INSPECTION [L.H.D.] ).
3	Rearview mirror (without auto-dimming rearview mirror) (See REARVIEW MIRROR REMOVAL/INSTALLATION ).
4	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION ). (See POWER WINDOW MAIN SWITCH INSPECTION [L.H.D.] ). (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE ).
5	Power outer mirror switch (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION ). (See POWER OUTER MIRROR SWITCH INSPECTION ).
6	Power window subswitch (front) (See POWER WINDOW SUBSWITCH (FRONT) REMOVAL/INSTALLATION ). (See POWER WINDOW SUBSWITCH INSPECTION ). (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE ).
7	Front power window regulator (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION ). (See FRONT POWER WINDOW MOTOR INSPECTION ).
