Home >> Mazda >> 2024 >> CX-90 Turbo Select >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Doors And Liftgate >> Power Liftgate (PLG) Control Module Removal/Installation >> Remove Trunk End Trim >> Trunk end trim component removal note

Trunk end trim component removal note

  1. Partially peel back the weather strip until the trunk end trim component can be removed.

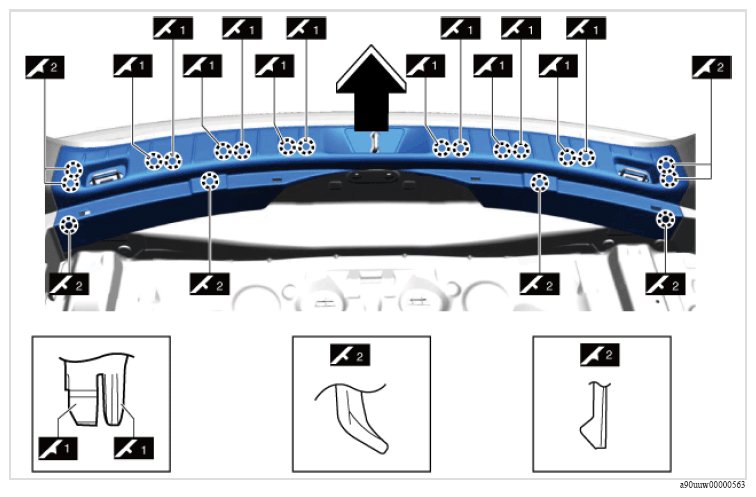

  2. Remove the trunk end trim component as shown in the figure below.
G16708829Courtesy of MAZDA MOTORS CORP.
