Perform Radar Sensor (Front Side) Aiming

CAUTION:

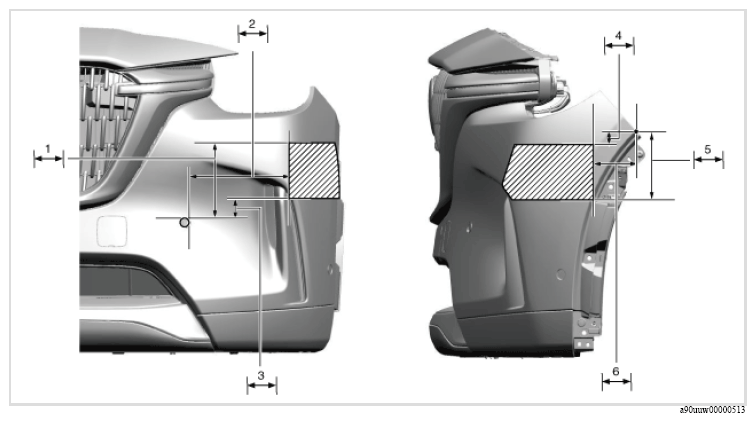

• When repainting the front bumper face, do not repaint the radar emitting area shown in the figure (same as right side) because the radar sensor (front side) aiming may not be performed correctly.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	Radar emitting area
	118 mm {4.65 in}
	220 mm {8.66 in}
	55 mm {2.2 in}
	35 mm {1.4 in}
	157 mm {6.18 in}
	100 mm {3.94 in}

NOTE:

• Refer to the troubleshooting information for the [RADAR SENSOR (FRONT SIDE) AIMING] procedure using the M-MDS.
