Tie Rod Disassembly Note

  1. Move the stopper at the steering rack end in the direction of the arrow so that a wrench can be hooked to the steering rack end.
    • The figure shows the left side (same as right side).
    G16712176Courtesy of MAZDA MOTORS CORP.
  2. Stop the end of the steering rack (pinion gear side) with a wrench, etc. SST Remove the inner ball joint using the tool.
    • The figure below shows the left side (same as right side).

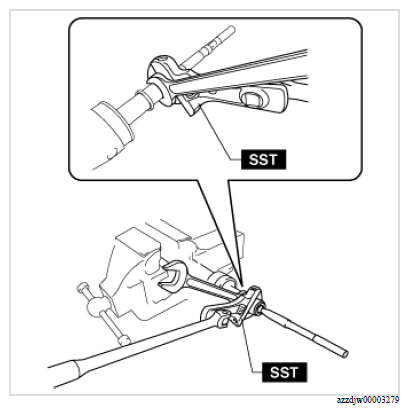

G16712177Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
49 JP02 001
