Remove 150 W Power Supply Unit: Notes

Remove using the procedure shown in the figure below.

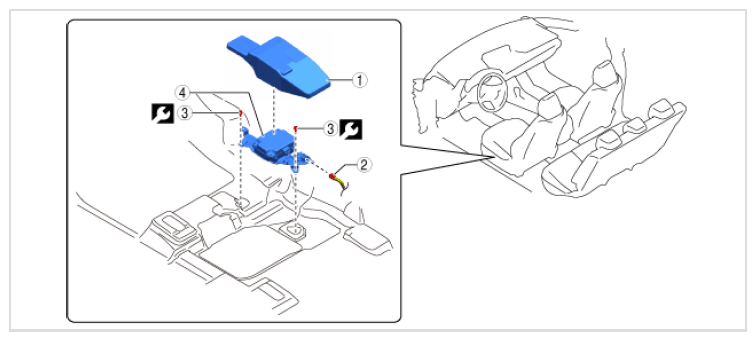

Fig 1: 150 W Power Supply Unit Bolt With Torque Specifications

G16707360

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Cover (See Cover removal note ).	-
2	Connector	-
3	Bolt	11 N.m {110 kgf.cm, 95 in.lb}
4	150 W power supply unit	-
