Front brake caliper component installation note

  1. Clean the exposed area of the piston.

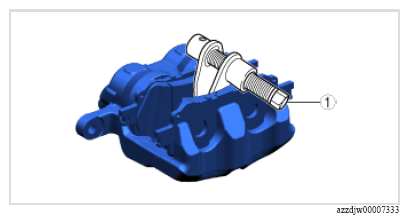

  2. Press in the piston using a commercially available disc brake expander tool.
    G16699298Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 Disc brake expander tool
  3. Install the front brake caliper component.
