Remove Bass Box

  1. Remove using the procedure shown in the figure below.

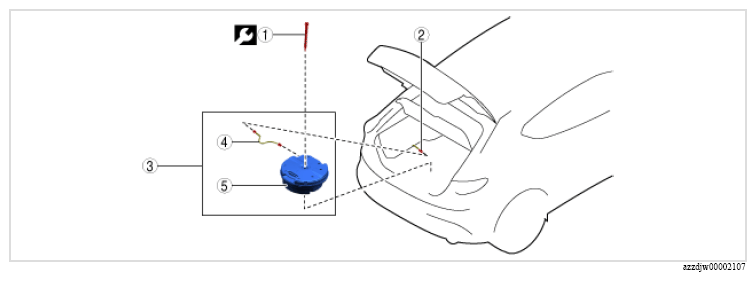

Fig 1: Bass Box Components Location With Torque Specification
G16717426Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Step Part name
1 Bolt 6. N.m {61 kgf.cm, 53 in.lb}
2 Connector -
3 Bass box component -
4 Short-cord -
5 Bass box -
