Remove Rear Over Fender (LH): Notes

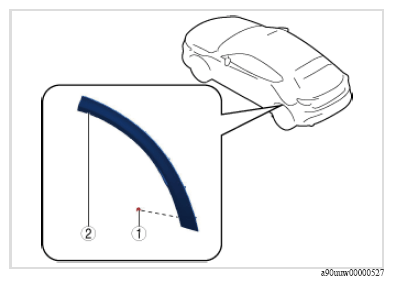

  1. Remove using the procedure shown in the figure below.
    • the figure below shows the left side (same as right side).
    G16702463Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Fastener
    2 Rear over fender
    (See Rear over fender removal note ).
    (See Rear over fender installation note ).
  2. Install in the reverse order of removal.
