Remove Main Silencer

Remove in the order indicated in the table.

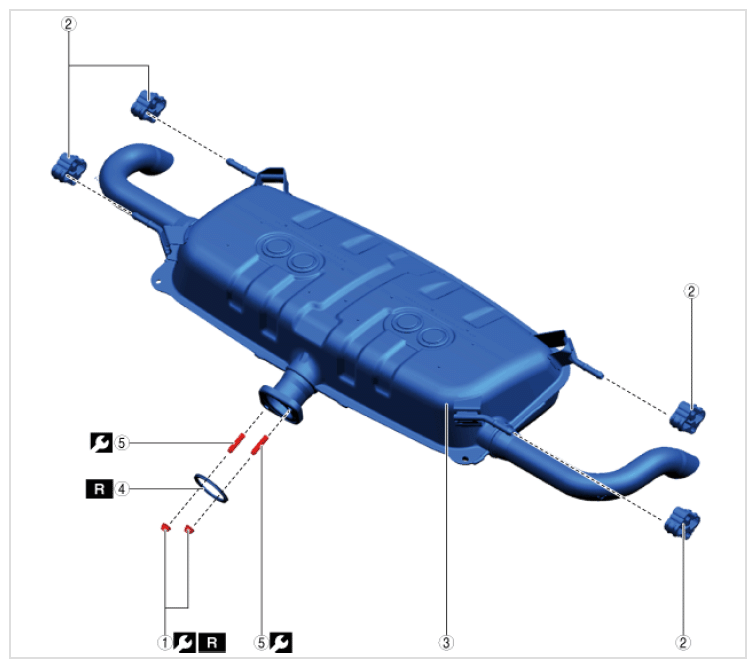

Fig 1: Main Silencer Nut With Torque Specifications

G16707422

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Nut	Replacement part	44.5 N.m {4.55 kgf.m, 32.8 ft.lb}
2	Rubber	-	-
3	Main silencer	-	-
4	Gasket	Replacement part	-
5	Stud	-	20 N.m {2.05 kgf.m, 14.75 ft.lb}
