Remove The Transverse Member

  1. Remove using the procedure shown in the figure below.

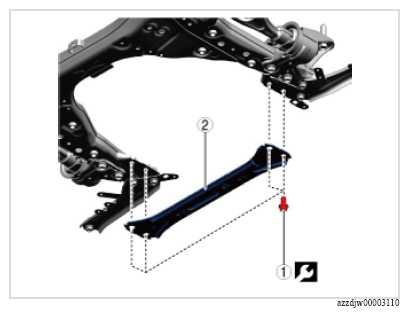

Fig 1: Transverse Member Bolt With Torque Specifications
G16699277Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Bolt 91 N.m {9.25 kgf.m, 67.05 ft.lb}
2 Transverse member -
