Remove Muffler Hanger Bracket

  1. Remove in the order indicated in the table.

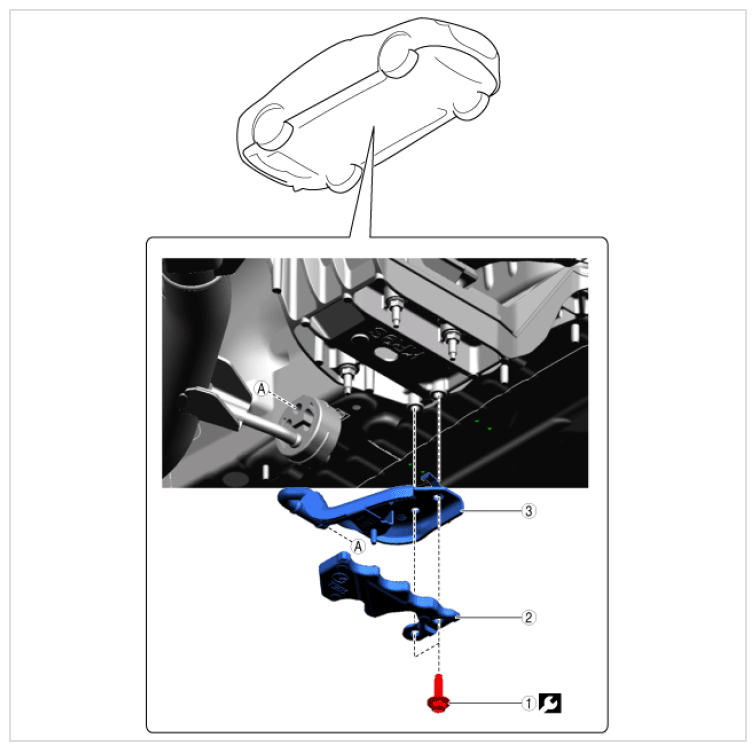

Fig 1: Muffler Hanger Bracket Bolt With Torque Specifications
G16707308Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Bolt 22 N.m {2.25 kgf.m, 16.25 ft.lb}
2 Weight -
3 Muffler hanger bracket -
