Remove Driver's Side Wiper Arm Cover

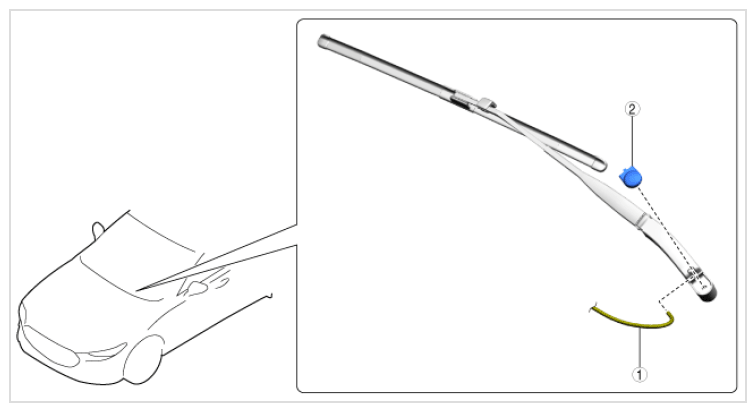

  1. Remove using the procedure shown in the figure below.
G16707175Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Procedure Part name
1 Windshield washer hose
2 Driver's side wiper arm cover
