Engine Oil Temperature Sensor/Engine Oil Pressure Sensor Removal/Installation [PYUL]
>>
Remove Center Seal Plate
Remove Center Seal Plate

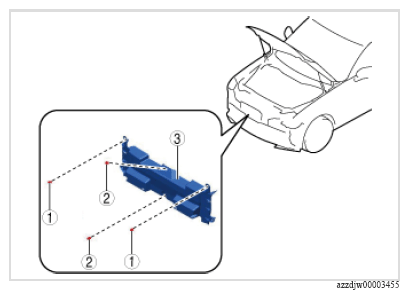

Remove using the procedure shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION
Step
Part name
1
Fasteners
2
Fasteners
3
Center seal plate
Courtesy of MAZDA MOTORS CORP.
