Install cooling system cap (sub)

  1. Remove in the order indicated in the table.

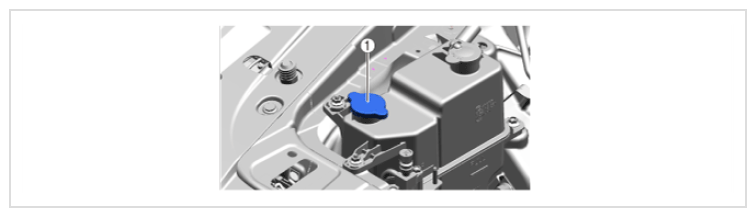

G16707323Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Step Part name
1 Cooling system cap (sub)


  1. Remove in the order indicated in the table.
G16707327Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Cooling system cap (sub)
