Disconnect Positive Lead-Acid Battery Terminal

1. Remove in the order indicated in the table.

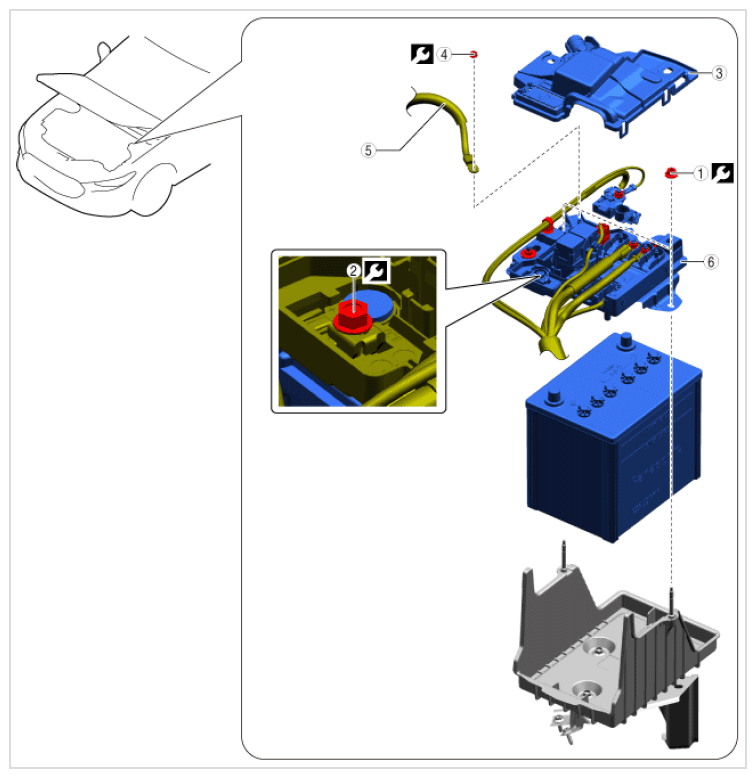

Fig 1: Positive Lead-Acid Battery Terminal Components Location With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Nut	6 N.m {61 kgf.cm, 53 in.lb}
2	Bolt	5 N.m {51 kgf.cm, 44 in.lb}
3	Lead-acid battery cap	-
4	Nut	9.5 N.m {95 kgf.cm, 82 in.lb}
5	Starter wiring harness	-
6	Lead-acid battery (plus) terminal component	-
