Remove Oil Pan Drain Plug

  1. Remove in the order indicated in the table.

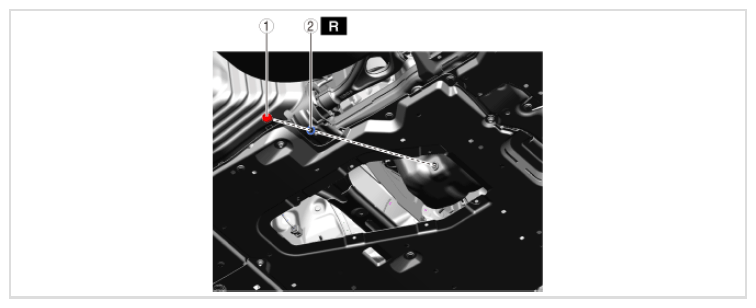

Fig 1: Oil Pan Drain Plug With Torque Specifications
G16707130Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Oil pan drain plug -
2 Gasket Replacement part
