Engine Oil Level Sensor Removal/Installation [PYUL]
>>
Open Capsule Cover
>>
Opening capsule cover note
Opening capsule cover note

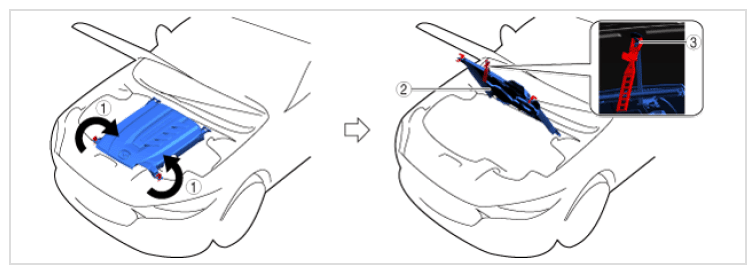

Open the capsule cover as shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION
Symbol
Content
(1) (2)...
Servicing procedure
Courtesy of MAZDA MOTORS CORP.
